Configure Workspace ONE Access for Omni

This guide walks through creating a Web App in Workspace ONE Access (WSOA) and configuring Omni to authenticate against it via SAML.

Configure Workspace ONE Access

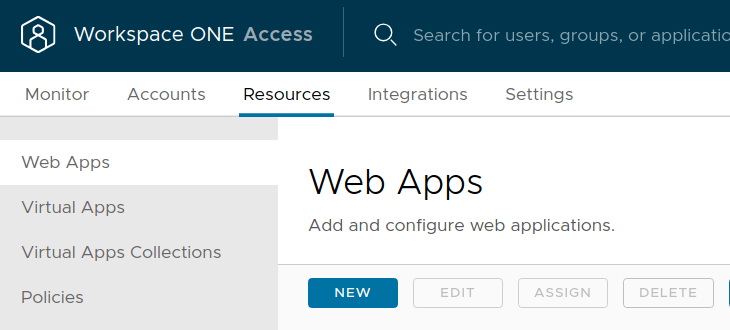

This section walks through creating and configuring the Web App inside WSOA.

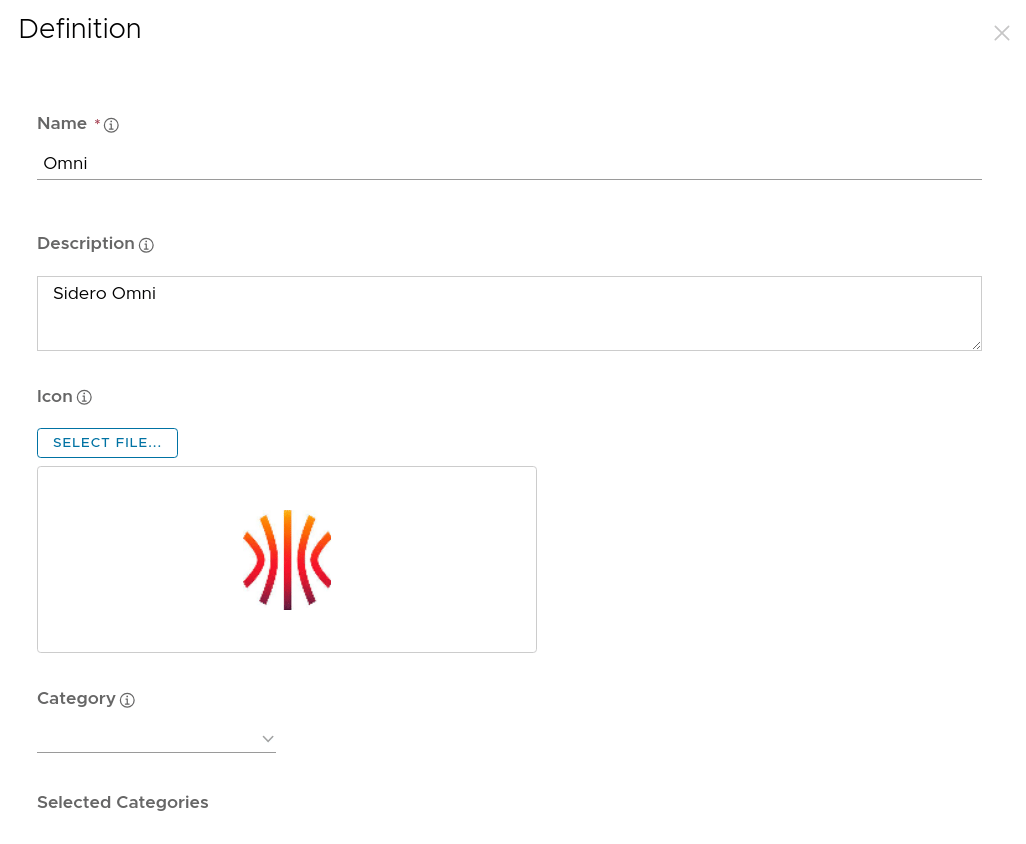

Step 1: Create a new Web App

Enter the following values to identify the application, then click Next.

Option	Value	Description
Name	Omni	A descriptive name for the Web App
Description	Sidero Omni	A description for the Web App
Icon	Image	An icon to display on the dashboard

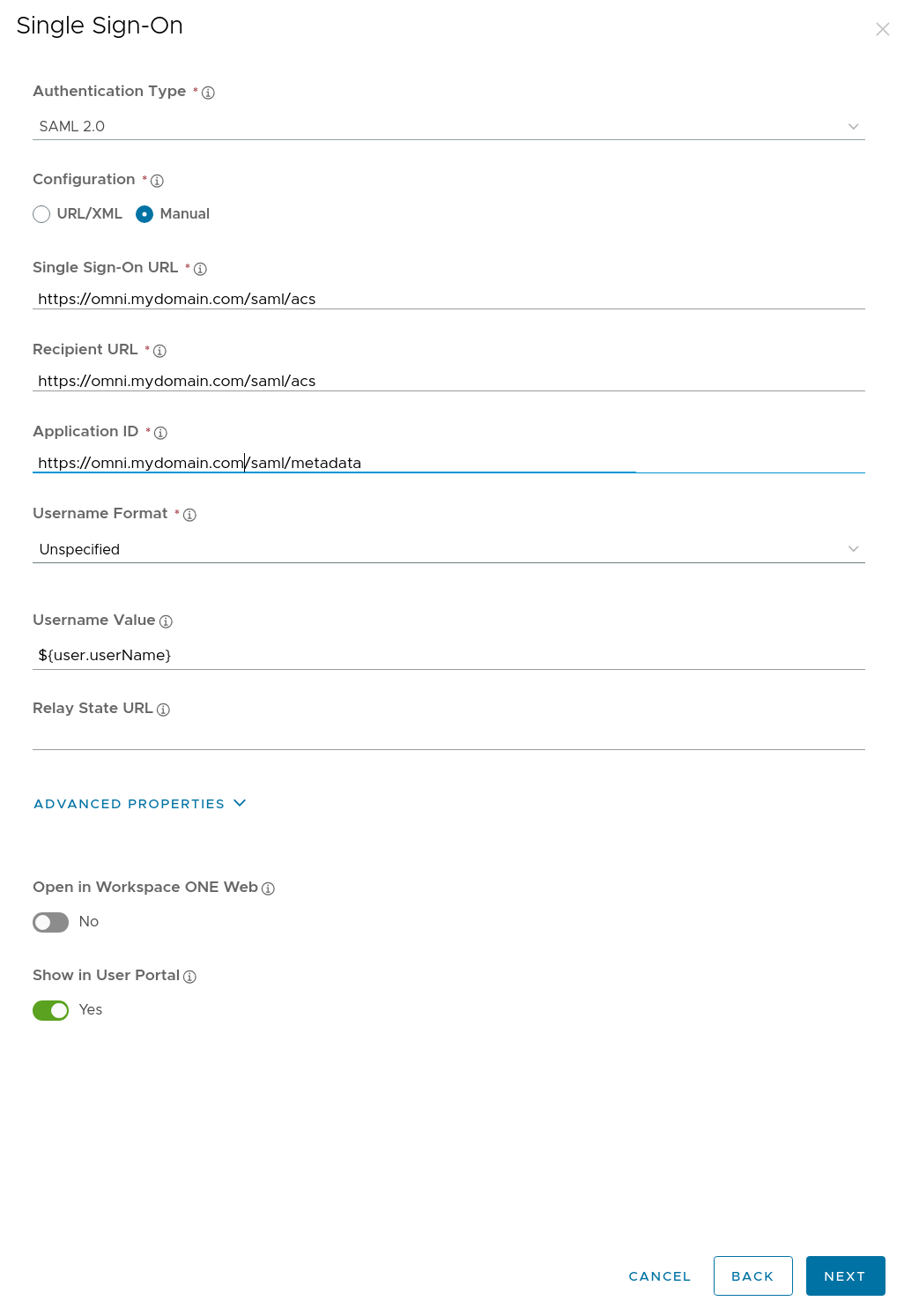

Step 2: Configure Single Sign-On

On the Single Sign-On page, configure the authentication type and endpoint URLs. The SSO URL and Recipient URL both point to Omni’s Assertion Consumer Service endpoint, and the Application ID points to its SAML metadata URL.

Option	Value	Description
Authentication Type	SAML 2.0	The authentication protocol to use
Configuration	Manual	Manually specify all fields
Single Sign-On URL	`https://{omni-host}/saml/acs`	Omni’s Assertion Consumer Service URL
Recipient URL	`https://{omni-host}/saml/acs`	Must match the Single Sign-On URL
Application ID	`https://{omni-host}/saml/metadata`	Omni’s SAML metadata URL
Username format	Unspecified	No specific username format required
Username value	`${user.userName}`	The username to include in the SAML assertion
Relay State URL	Blank	Leave this empty

Single Sign-On authentication type settings

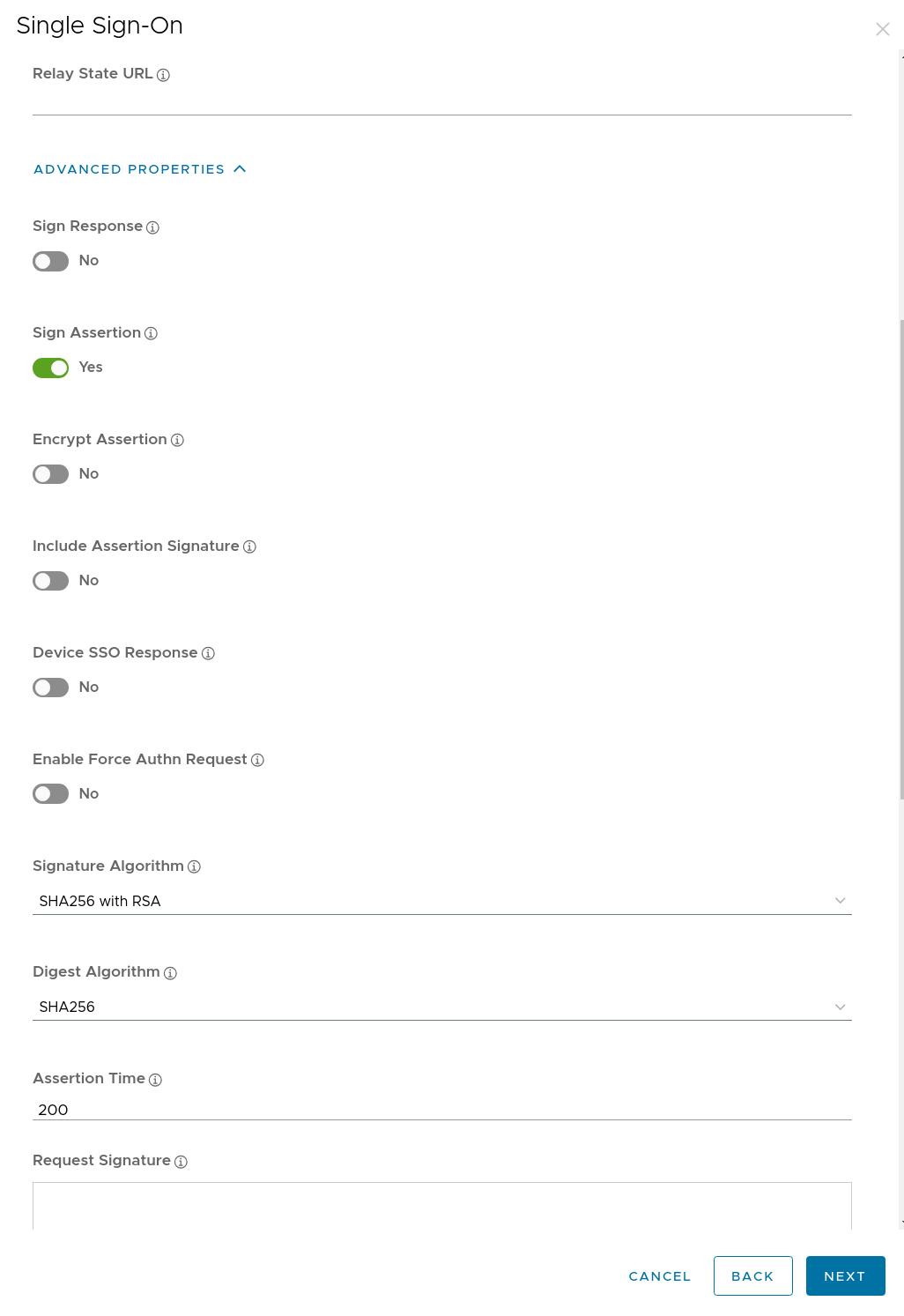

Step 3: Configure advanced signing properties

Still on the Single Sign-On page, scroll to the Advanced Properties section and set the following toggles. The key settings here are enabling assertion signing (required by Omni) while leaving response signing and assertion encryption off.

Option	Value	Description
Sign Response	False	Do not sign the full SAML response
Sign Assertion	True	Sign the SAML assertion (required)
Encrypt Assertion	False	Do not encrypt the assertion
Include Assertion Signature	False	Do not embed the signature separately
Device SSO Response	False	Disable Device SSO
Enable Force Authn Request	False	Do not force re-authentication
Signature Algorithm	SHA-256 with RSA	Algorithm used to sign the assertion
Digest Algorithm	SHA-256	Algorithm used to compute the digest
Assertion Lifetime	200	How long (in seconds) the assertion is valid

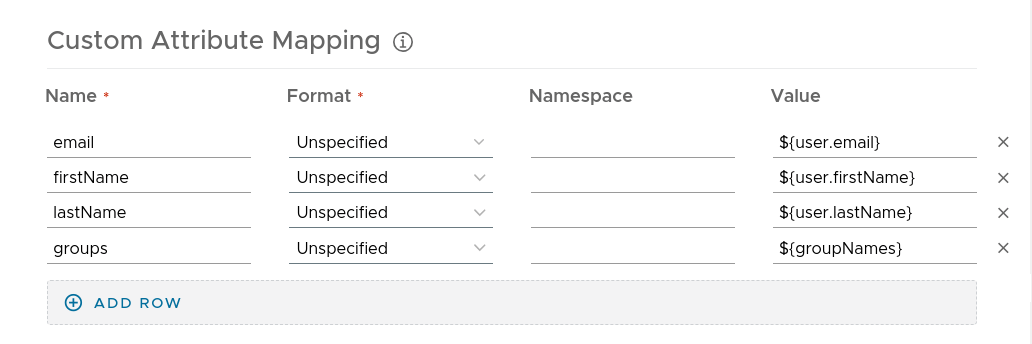

Step 4: Map custom attributes

At the bottom of the Single Sign-On page, add the following entries in the Custom Attribute Mapping section. These attributes allow Omni to identify users and apply group-based role assignments.

Name	Format	Value	Description
email	Unspecified	`${user.email}`	The user’s email address
firstName	Unspecified	`${user.firstName}`	The user’s first name
lastName	Unspecified	`${user.lastName}`	The user’s last name
groups	Unspecified	`${groupNames}`	The user’s group memberships

Step 5: Select an access policy

Click Next and select the access policy required by your organization.

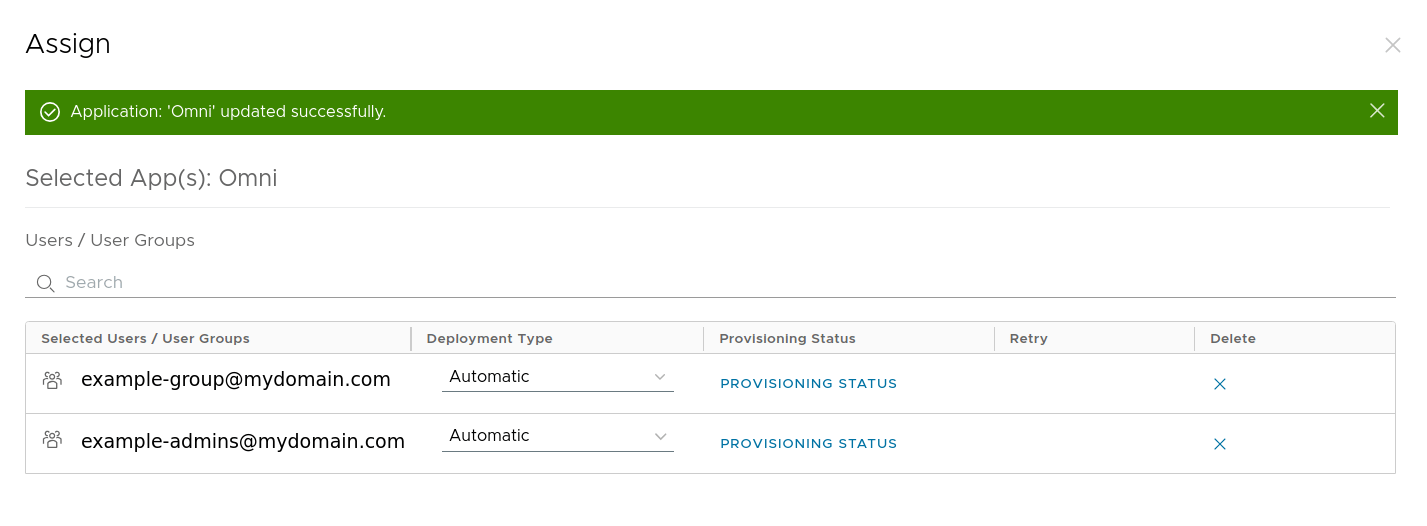

Step 6: Assign users and groups

Click Save & Assign and configure who is permitted to log in to Omni.

Select the permitted group from your Active Directory or LDAP server.
Set Deployment Type to Automatic.

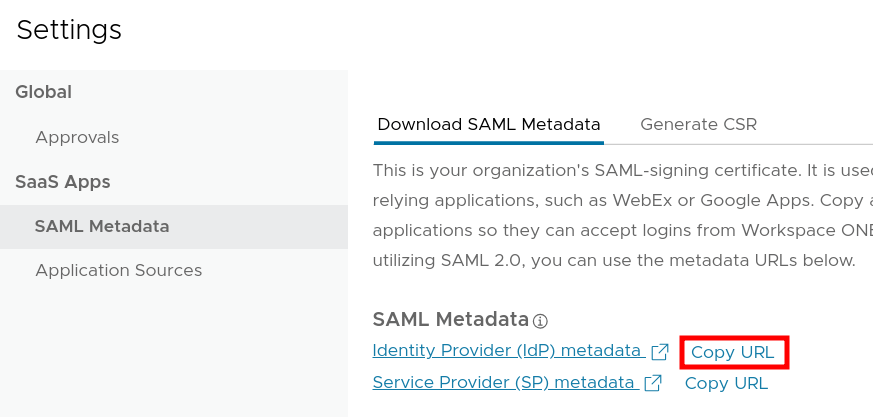

Step 7: Obtain the IdP metadata URL

Navigate to Settings and click Copy URL to copy the IdP metadata URL.

Copy this URL — you will pass it to Omni as the --auth-saml-url flag in the next step.

Configure Omni to use Workspace ONE Access

Pass the following flags to the Omni container at startup to enable SAML authentication. Alternatively, you can set these values in the Omni configuration file instead of passing them as CLI flags.

Flag	Description
`--auth-saml-enabled`	Enables SAML authentication
`--auth-saml-url`	The IdP metadata URL copied in Step 7
`--auth-saml-label-rules='{"groups": "groups"}'`	Extracts the `groups` attribute from the SAML assertion and maps it to the label `saml.omni.sidero.dev/groups/<value>`

For example:

--auth-saml-enabled=true
--auth-saml-url=https://{workspace-one-host}/SAAS/API/1.0/GET/metadata/idp.xml
--auth-saml-label-rules='{"groups": "groups"}'

Once Omni is running with these flags, refer to the Auto-assign roles to SAML users guide to automatically assign roles based on SAML group attributes. When using groups, the label prefix is saml.omni.sidero.dev/groups/ rather than a role name directly. For example:

metadata:
  namespace: default
  type: SAMLLabelRules.omni.sidero.dev
  id: assign-admin-to-platform-admins-label
spec:
  assignroleonregistration: Operator
  matchlabels:
    - saml.omni.sidero.dev/groups/omni-platform-administrators
